Fleche prototype hull

The concept
Other ideas


(Build sequence from December 2005 to August 2006)

(click on images to enlarge)

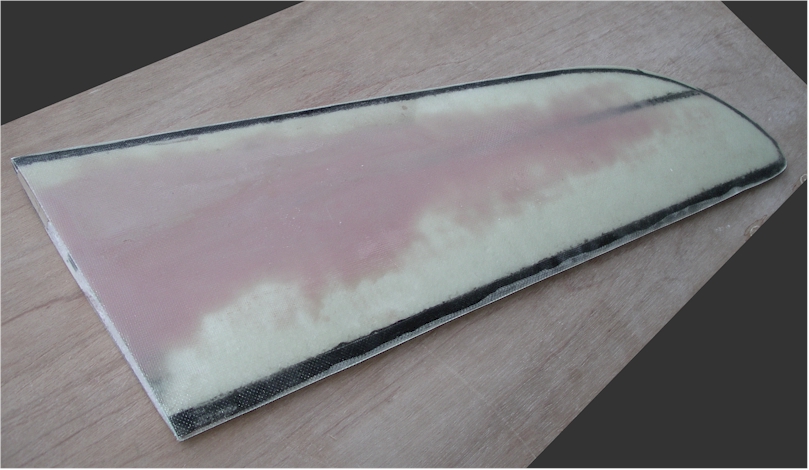

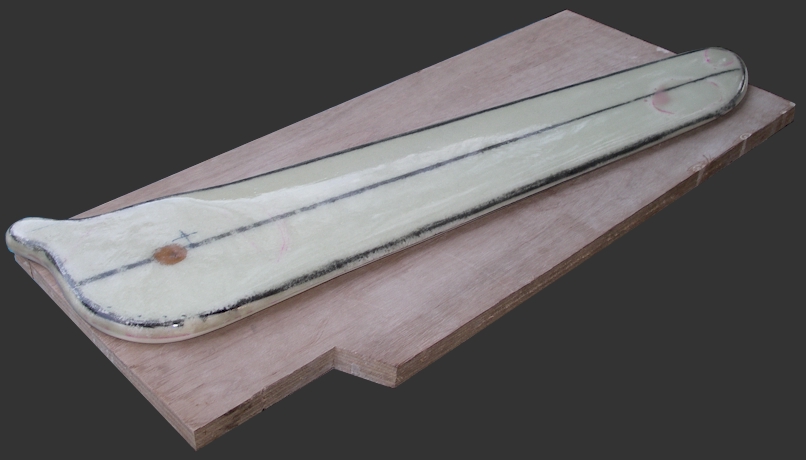

  • construction of foils: centreboard (above) and rudder (below)

  • they have a foam core, a central carbon fibre spar, carbon fibre reinforcement around the edges, and are covered with glassfibre cloth applied with epoxy resin

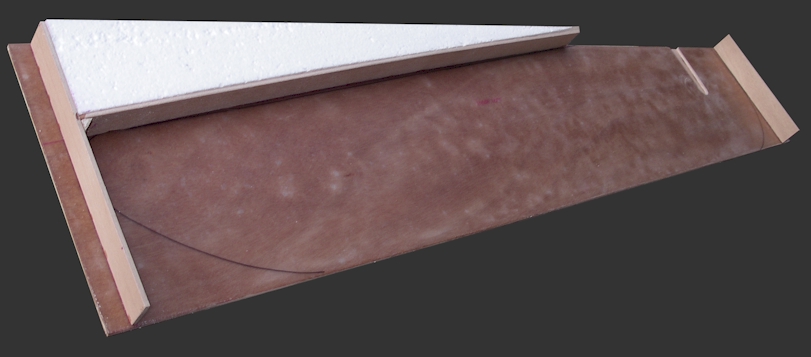

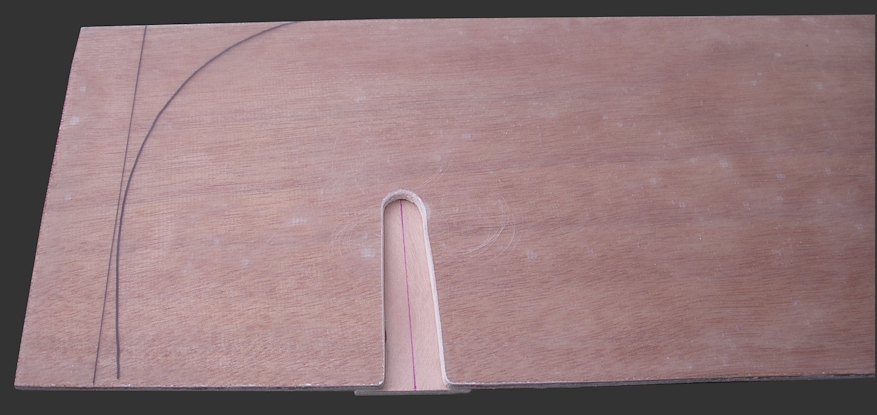

  • construction of the centreboard box from marine ply and expanded polystyrene

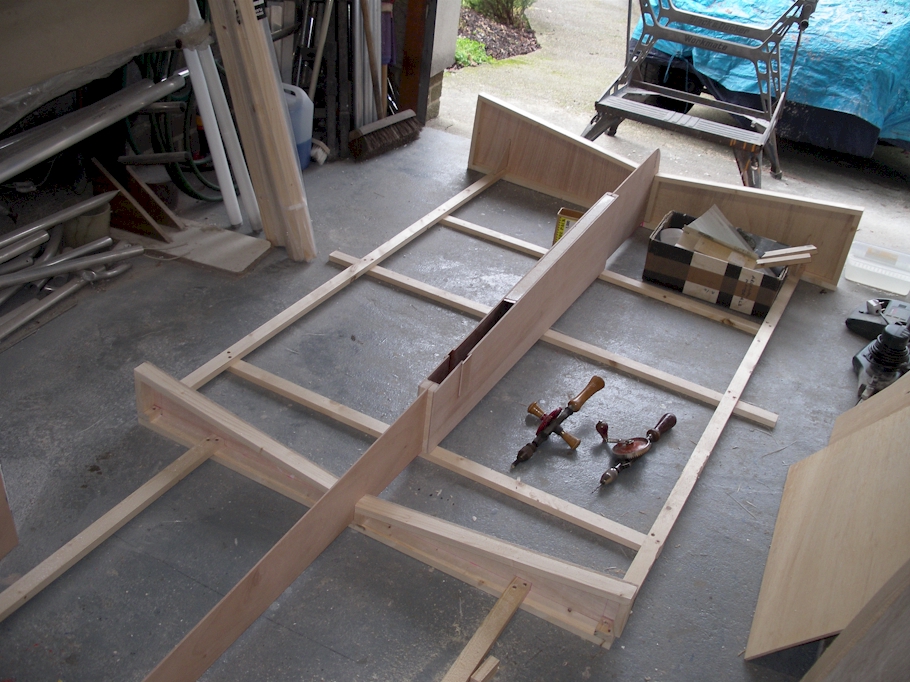

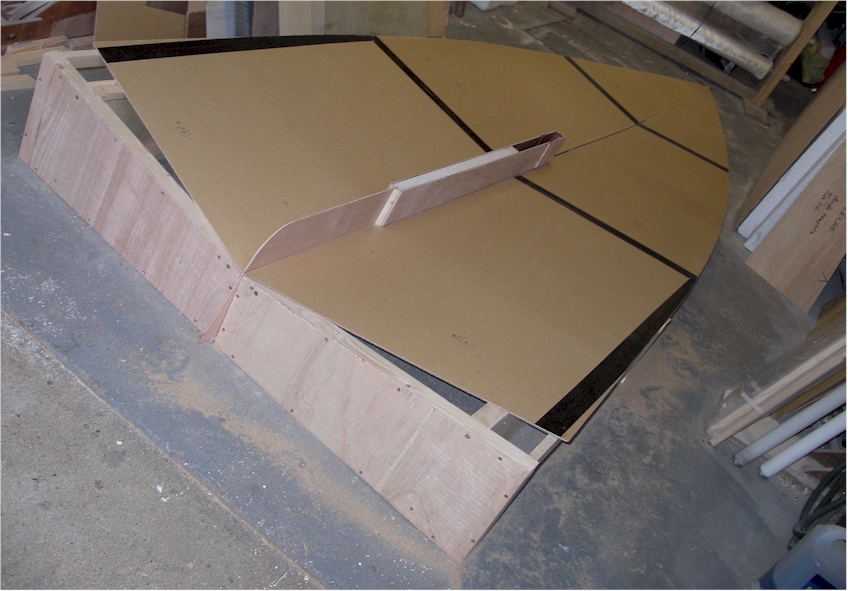

  • construction of a jig to support construction of the hull

  • panels added to provide a surface on which to build up the foam core

  • completed central plywood stringer, with rudder mounts at the back, centreboard box, a vertical tube for optional windsurfing rig, and a horizontal tube at the front end for optional bowsprit

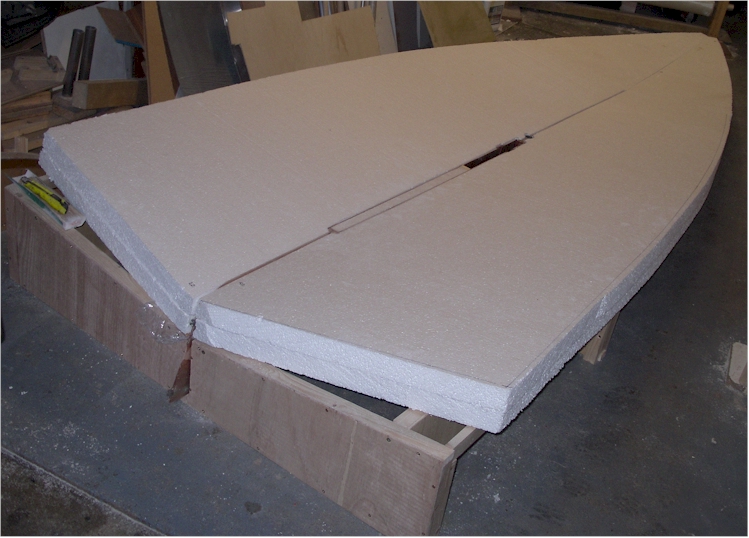

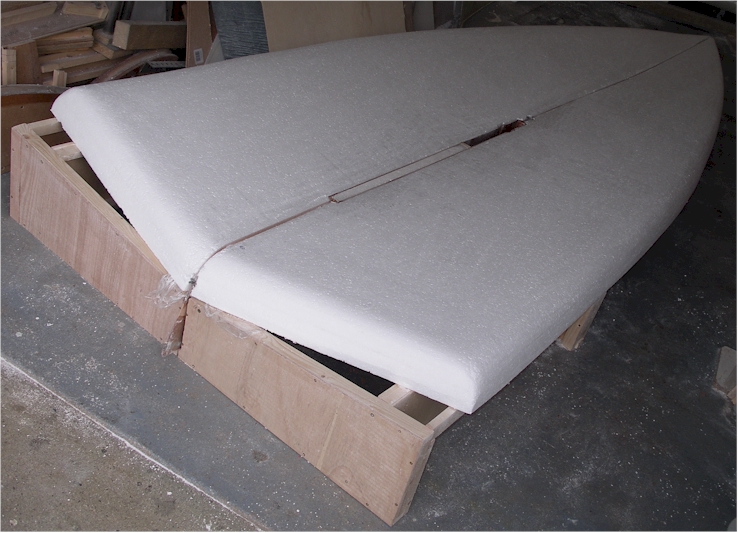

  • core built up from 5cm-thick panels of expanded polystyrene

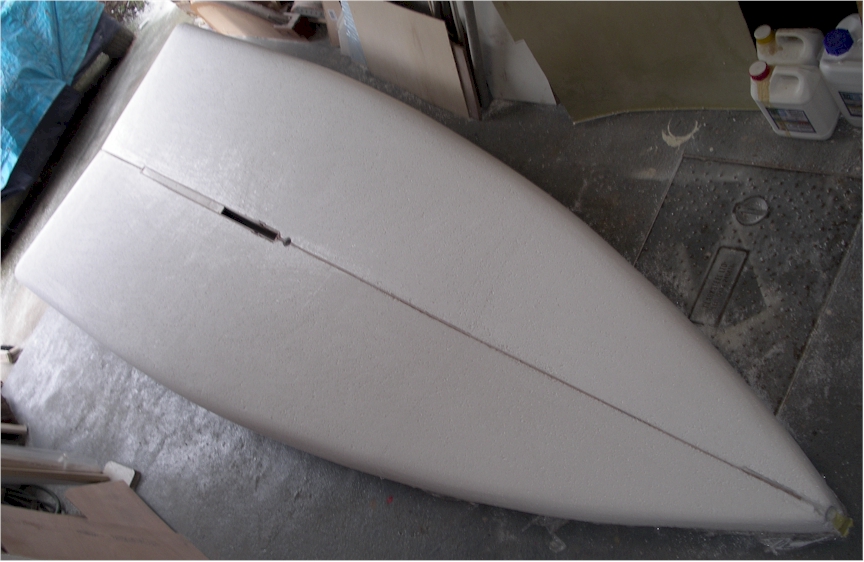

  • initial rough shaping of the core

  • final shaping of the upper deck area

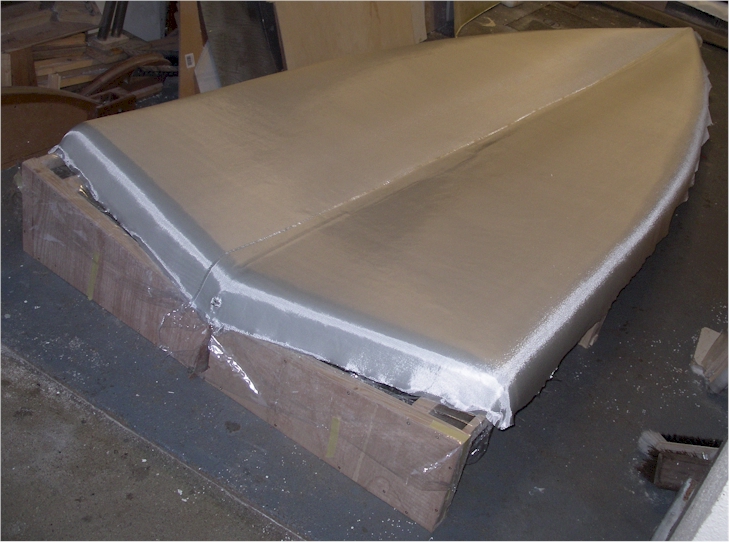

  • layers of glassfibre cloth laid dry over core - 3 layers in main deck area and 2 elsewhere

  • epoxy resin added to wet the glassfibre layers

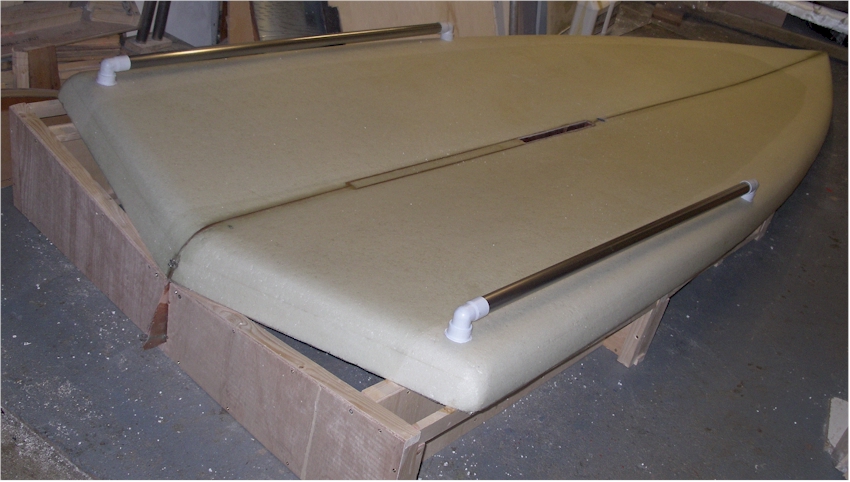

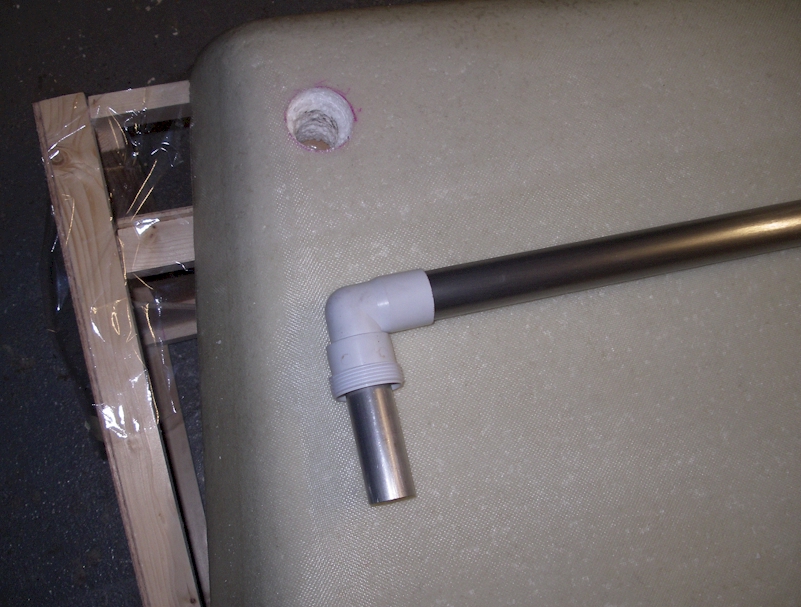

  • side tubes added

  • additional coat of epoxy resin

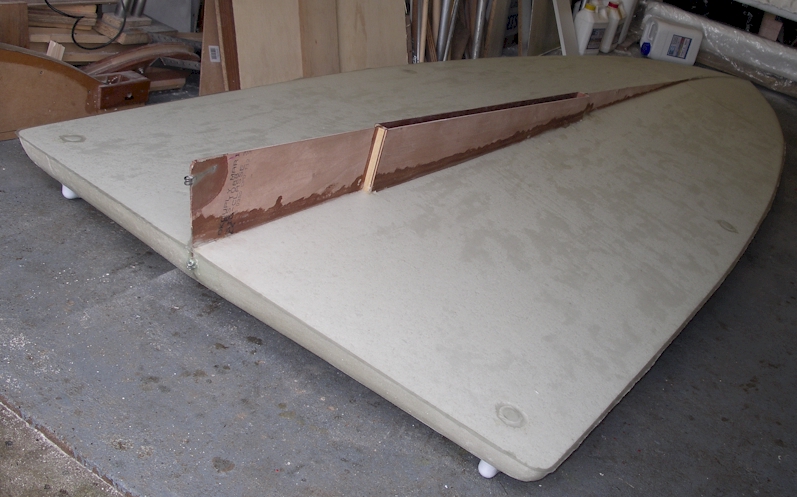

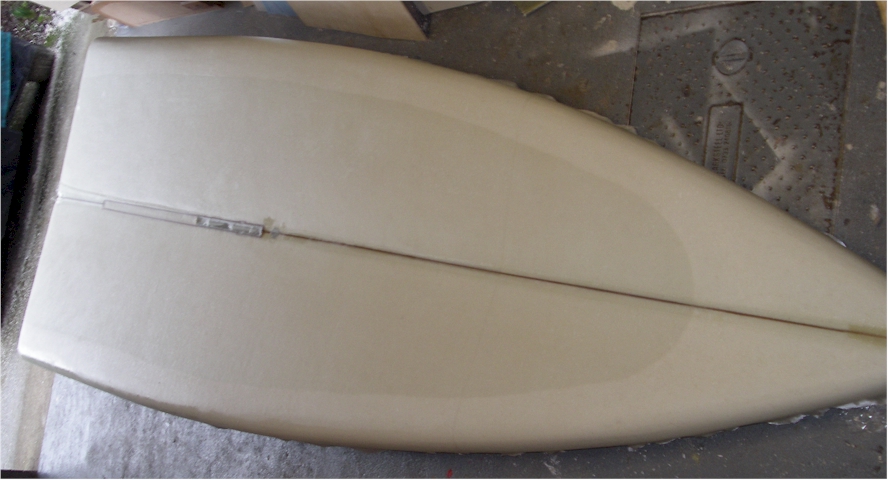

  • after shaping, 2 layers of glassfibre cloth were laid on undersurface and epoxy resin added

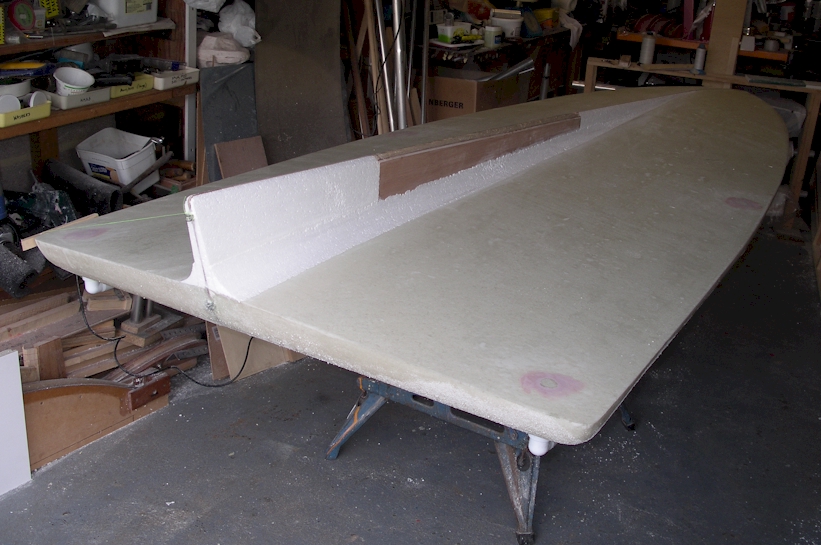

  • central ridge built up with foam in front of and behind the centreboard box

  • initial shaping of centreline ridge

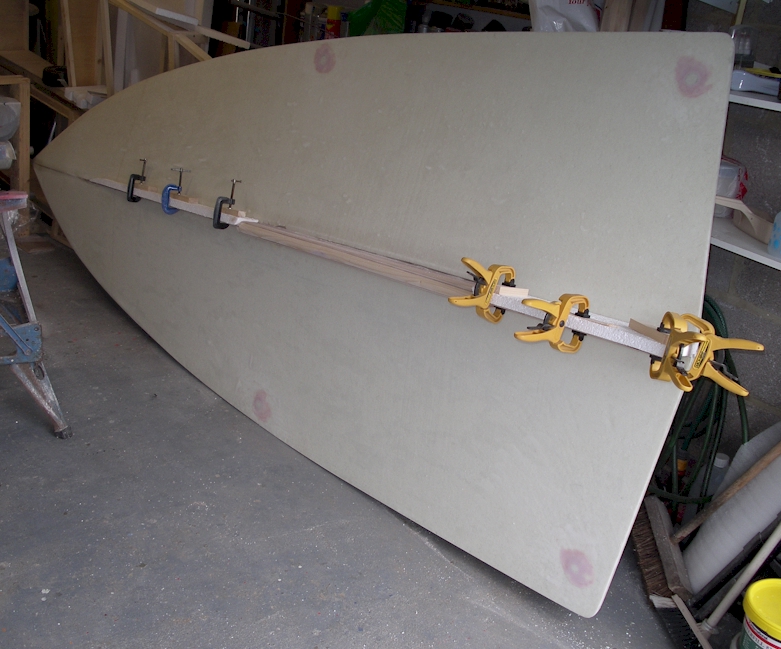

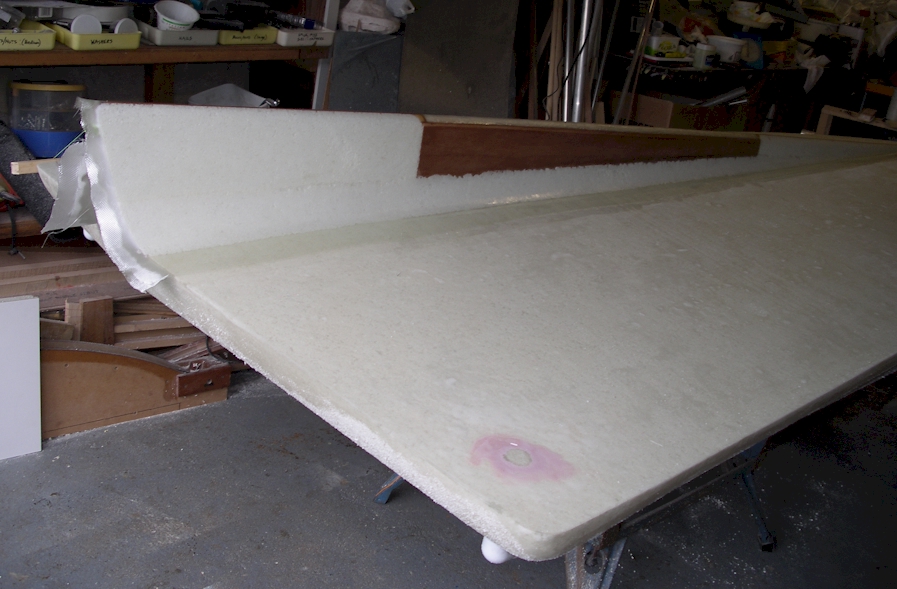

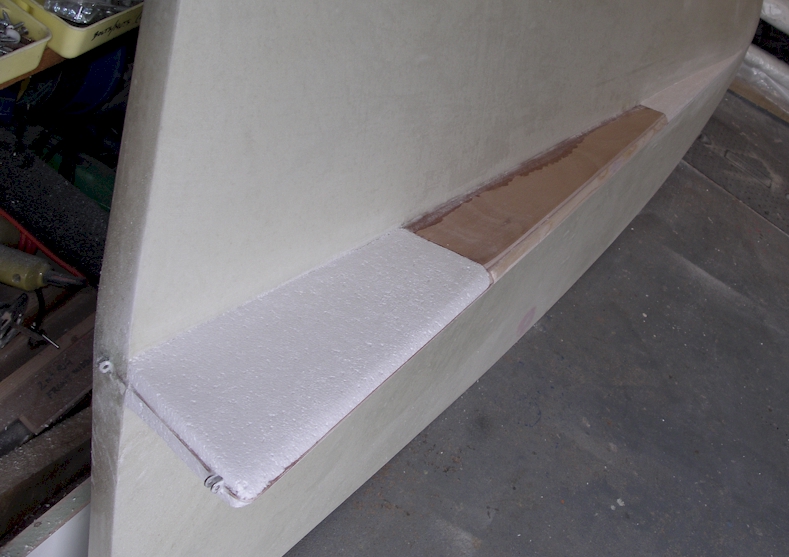

  • foam fillet added between the ridge and underside

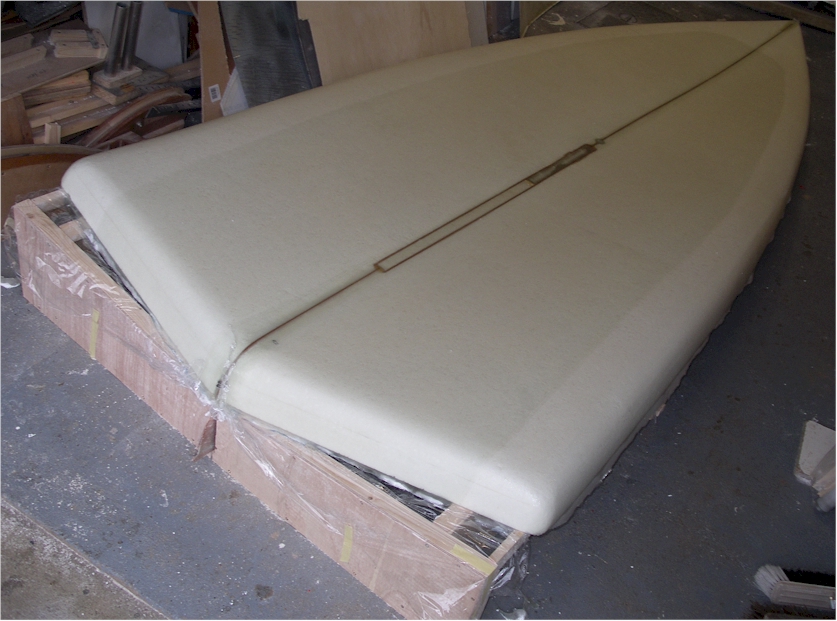

  • two layers of glassfibre cloth laid on with epoxy resin

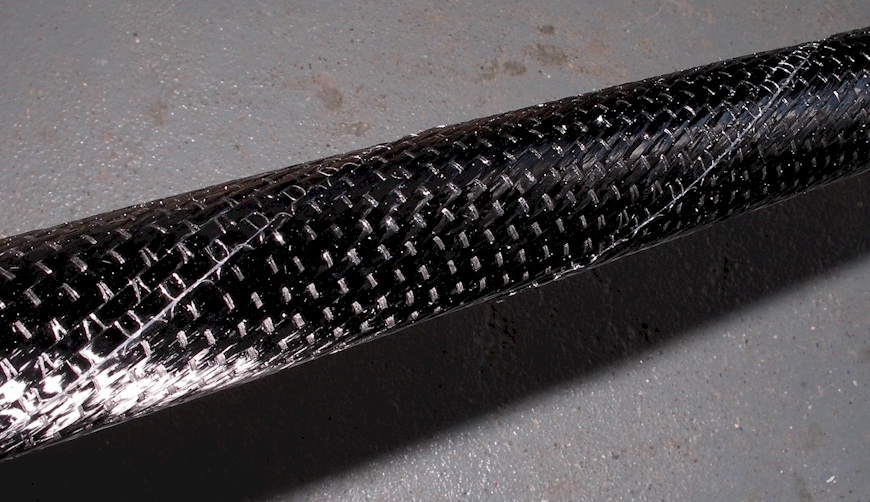

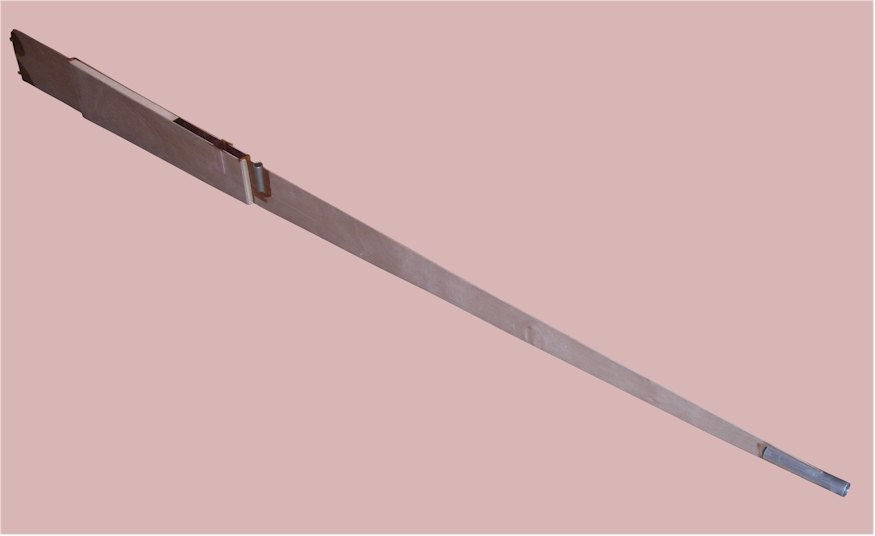

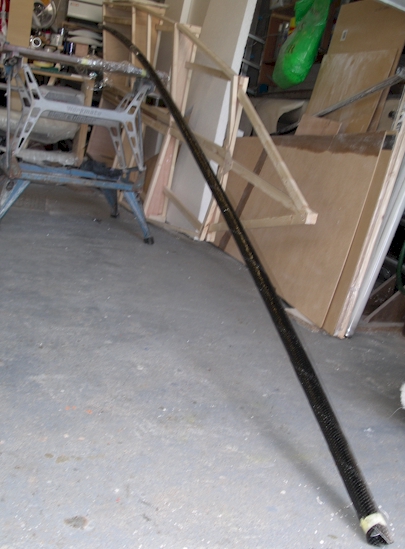

  • mast made from curving aluminium tube 1.25" outside diameter with spiral layers of carbon fibre tape laid in different orientations along the mast with epoxy resin

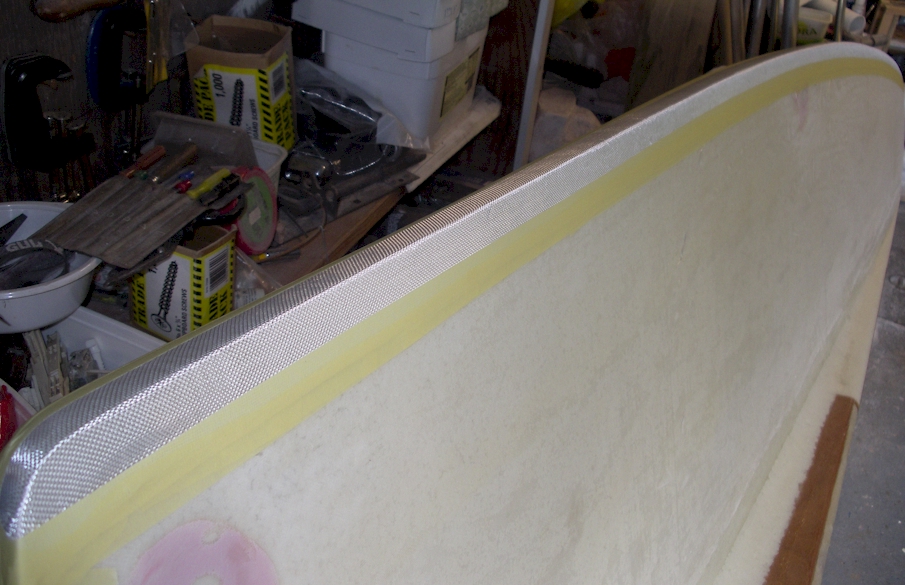

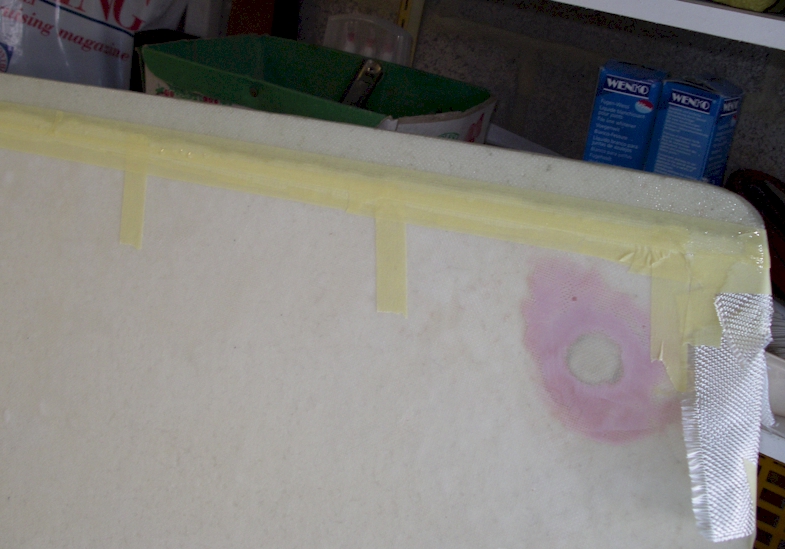

  • two additional layers of glassfibre cloth/epoxy resin added to the edges of hull for reinforcement

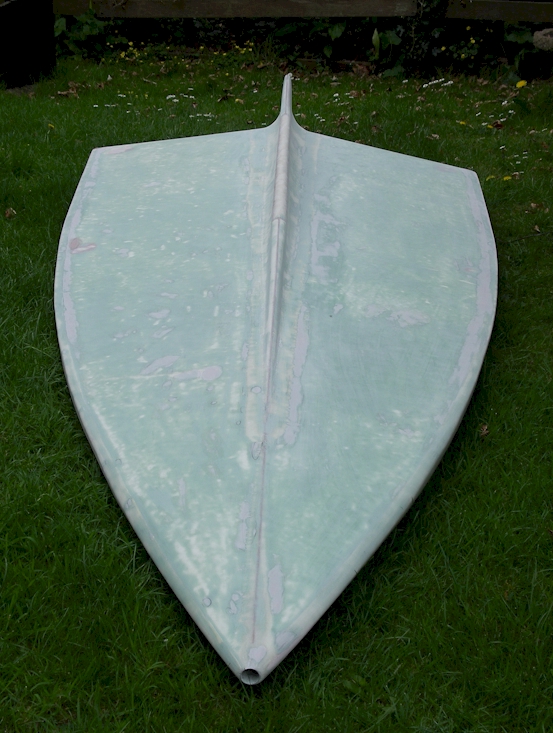

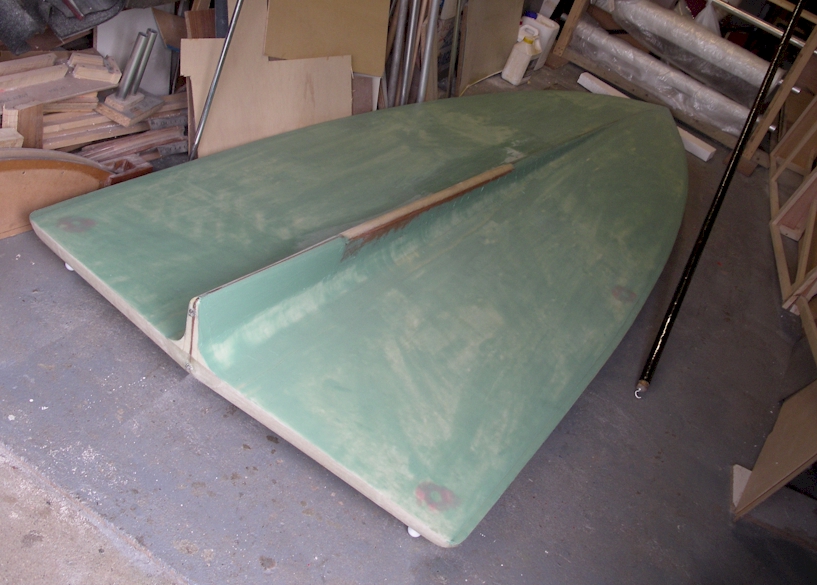

  • filler coat added to underside of hull - not yet sanded

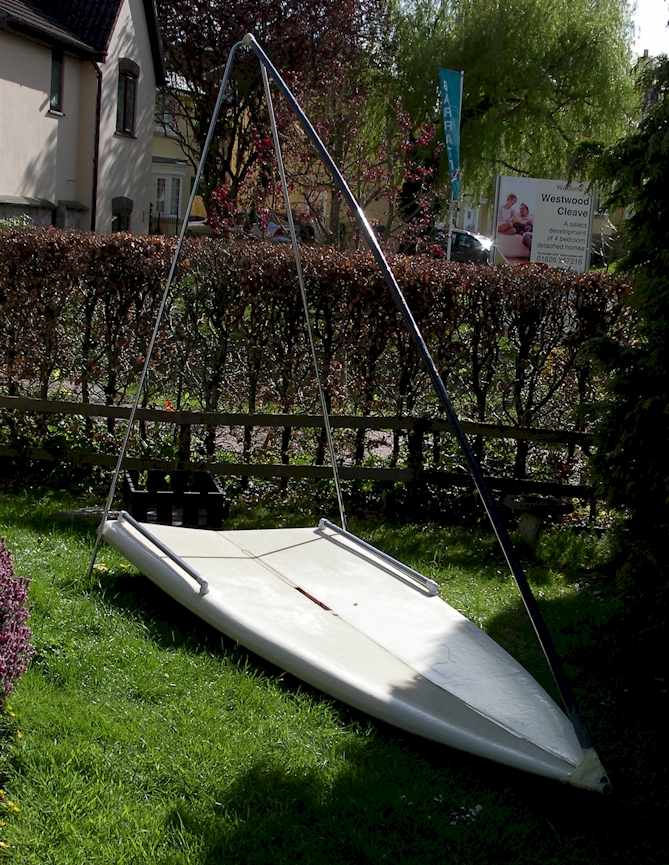

  • upper ends of A-frame joined, and top mast bracket added

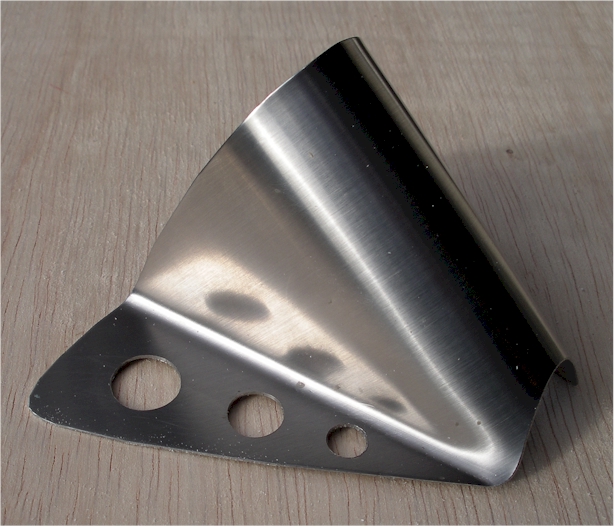

  • front bracket for mast made from stainless steel plate

  • sanding of underside in progress

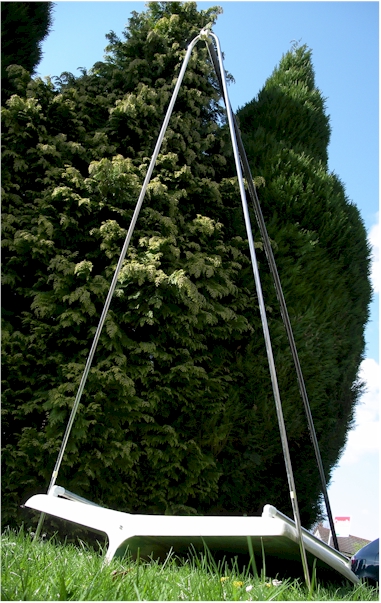

  • working out optimal dimensions for mast and A-frame

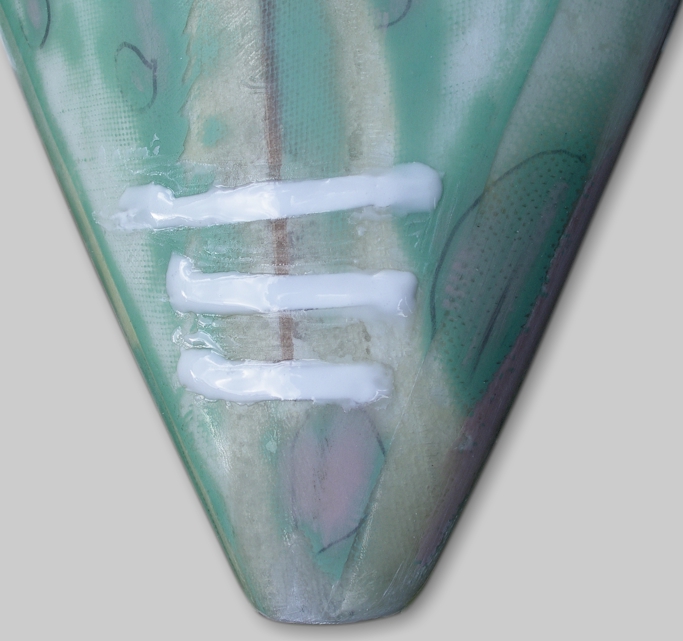

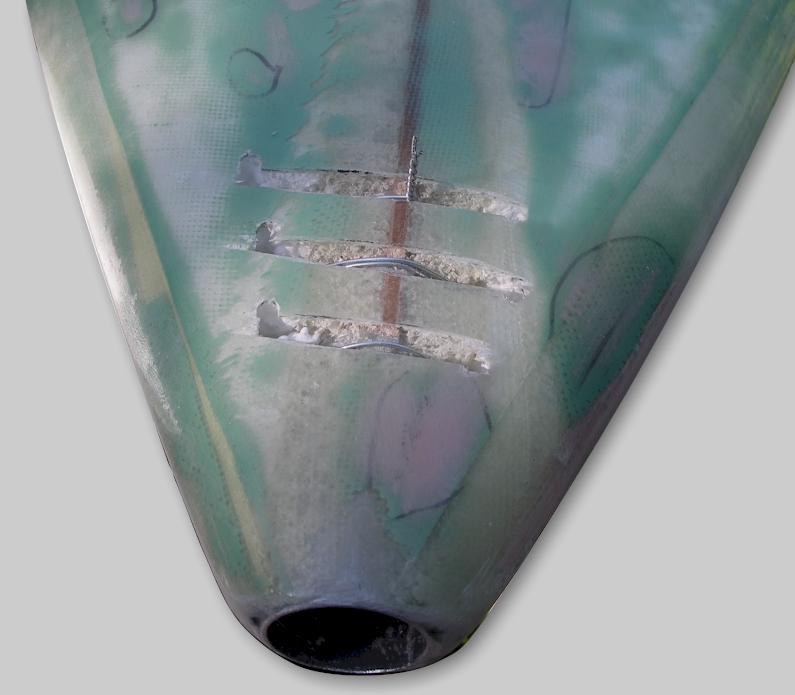

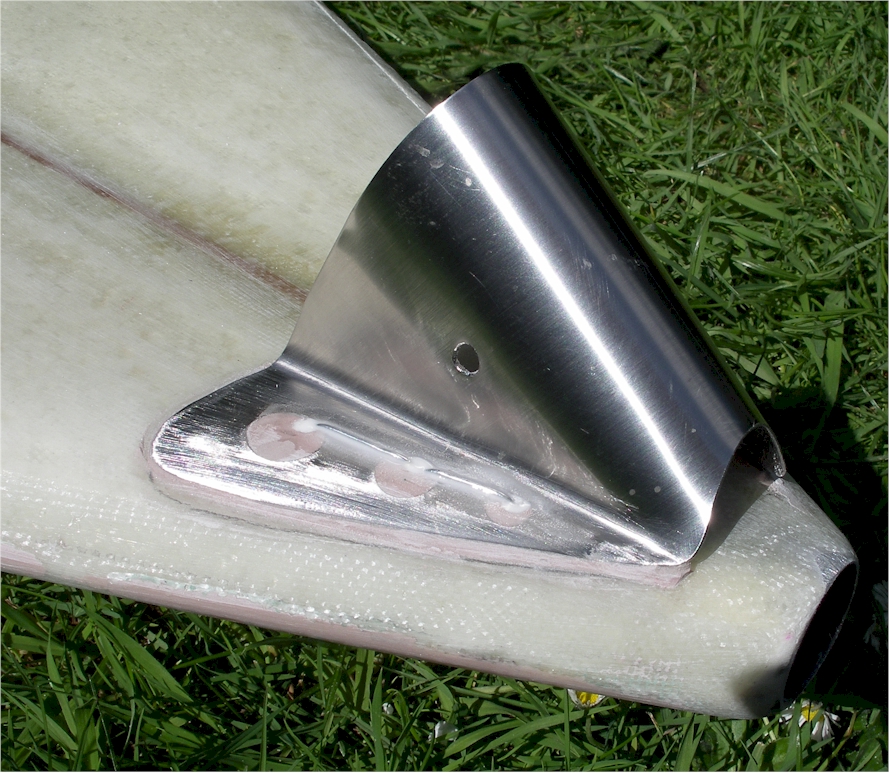

  • fitting bracket to nose of craft with wire lacing around underside of nose tube
  • additional layers of glassfibre cloth/epoxy resin added over bracket feet

  • deck graphics
