This sail is unusual in having two membranes - on most points of sail the membranes are in contact with each other, but sailing downwind the membranes can be opened so that the sail takes on the form of a spinnaker.

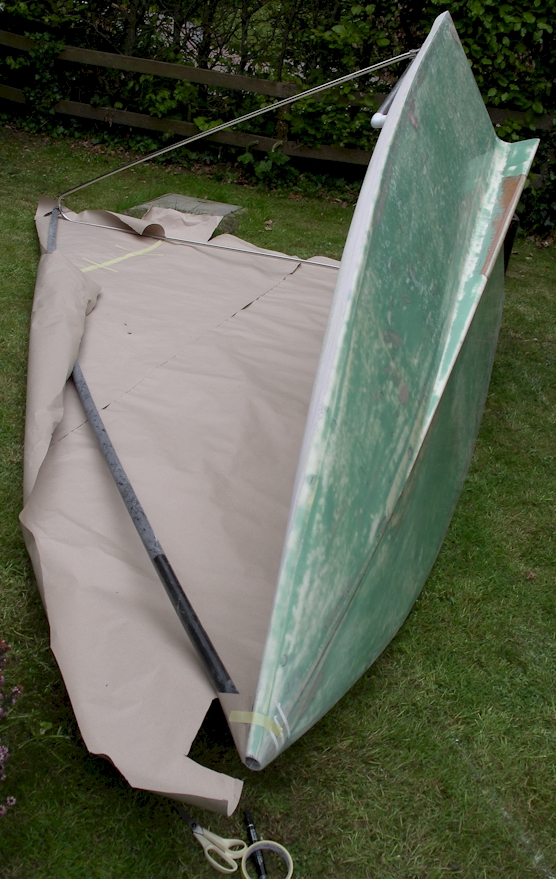

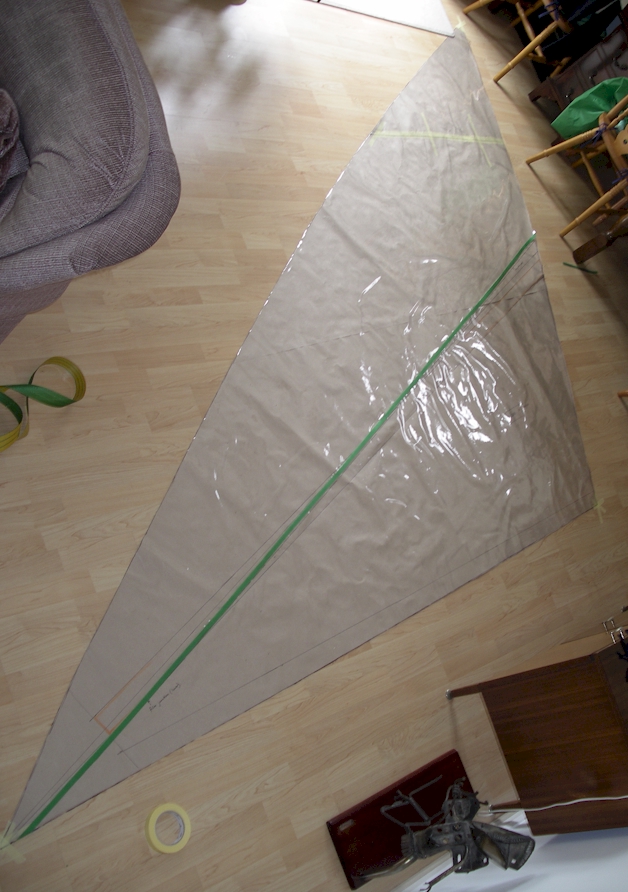

  • making paper template for sail

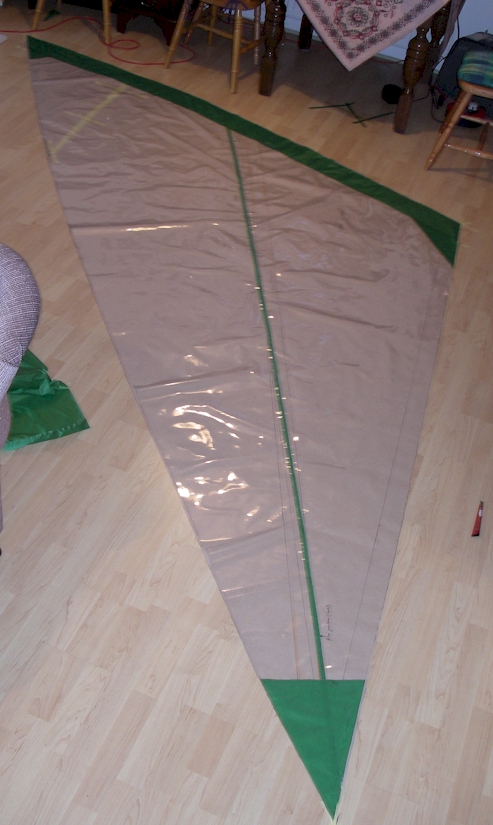

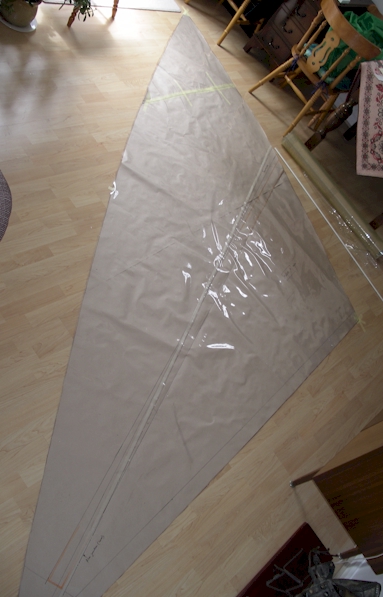

  • cutting out plastic film for both sail membranes

  • joining film using spinnaker nylon on each side and sewing the seam

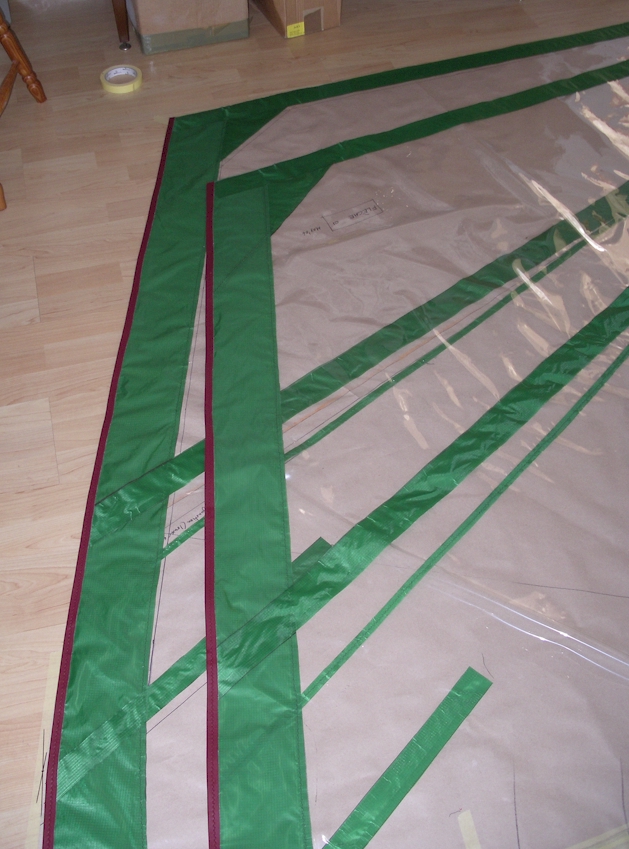

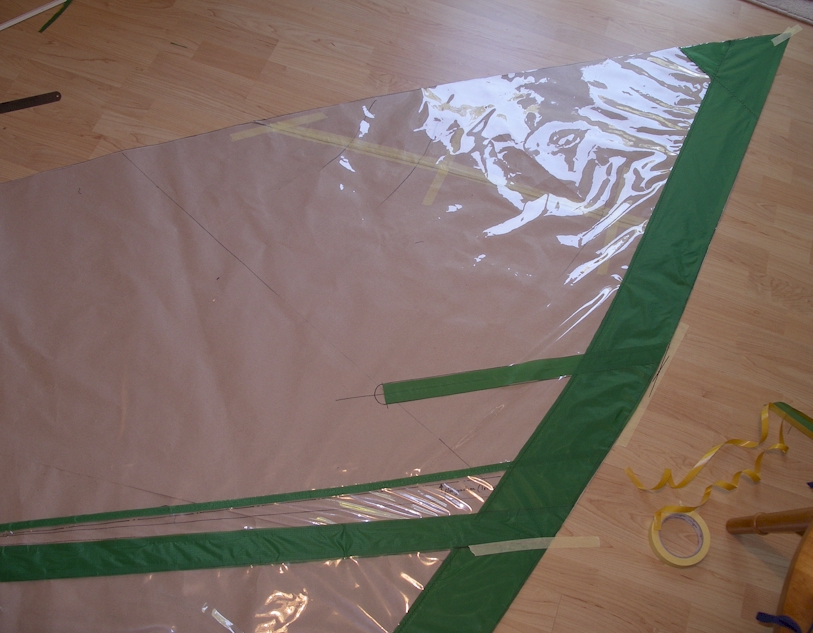

  • adding reinforcements to each corner and the trailing edge of each membrane

  • adding batten liners from nylon

  • adding reinforcing tape along trailing edge

  • two identical membranes

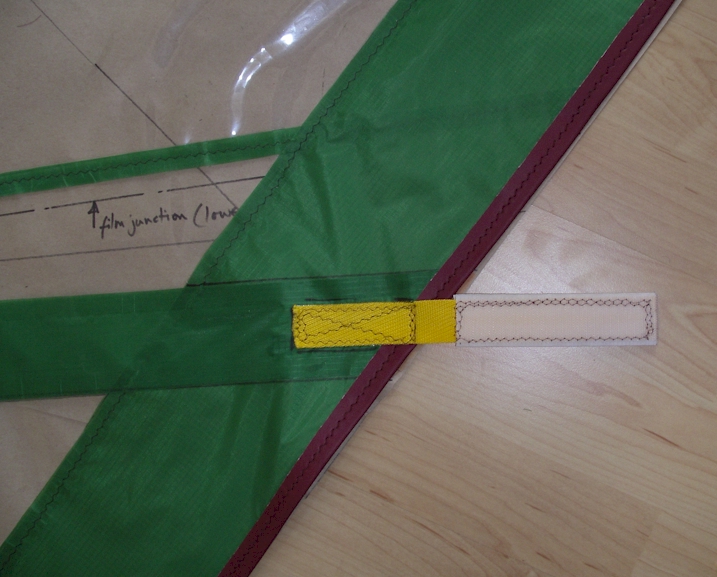

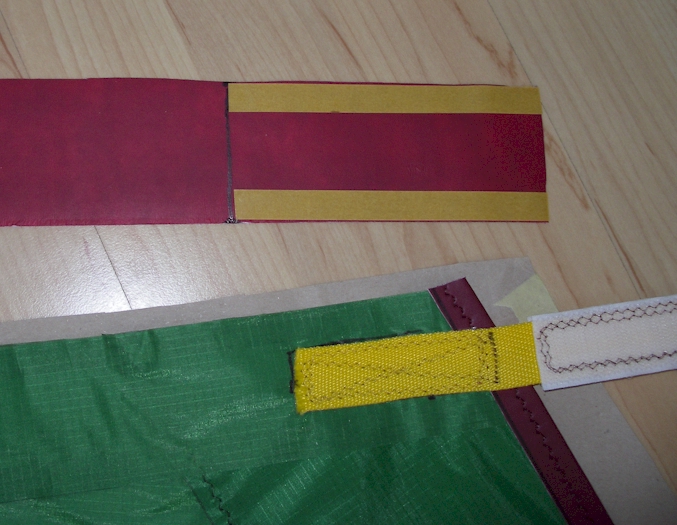

  • add webbing with velcro for batten tensioner

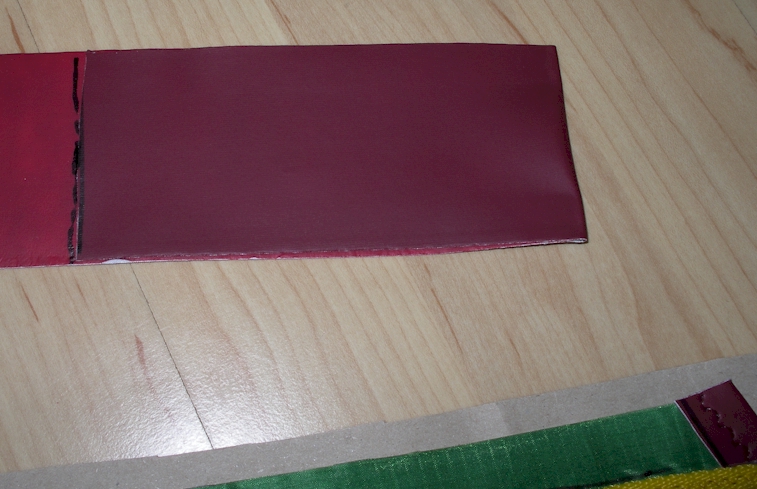

  • outer batten sleeve - doubling back the outer end

  • and fixing with double-sided tape

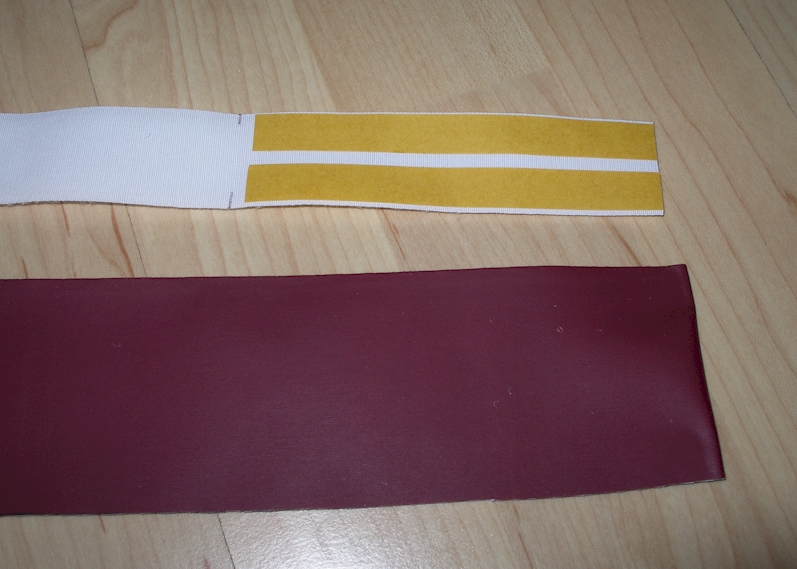

  • preparing velcro tape

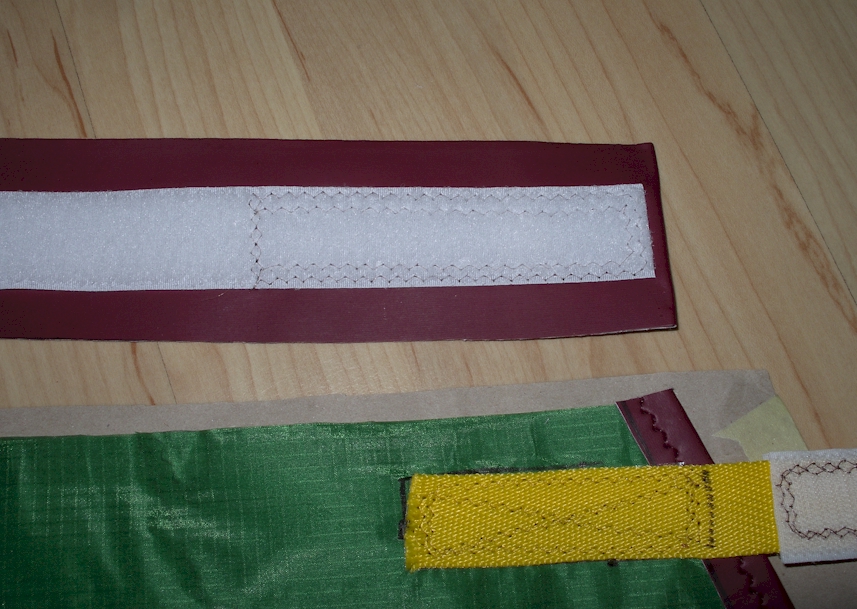

  • positioning velcro over doubled outer end of batten sleeve ready for stitching in place

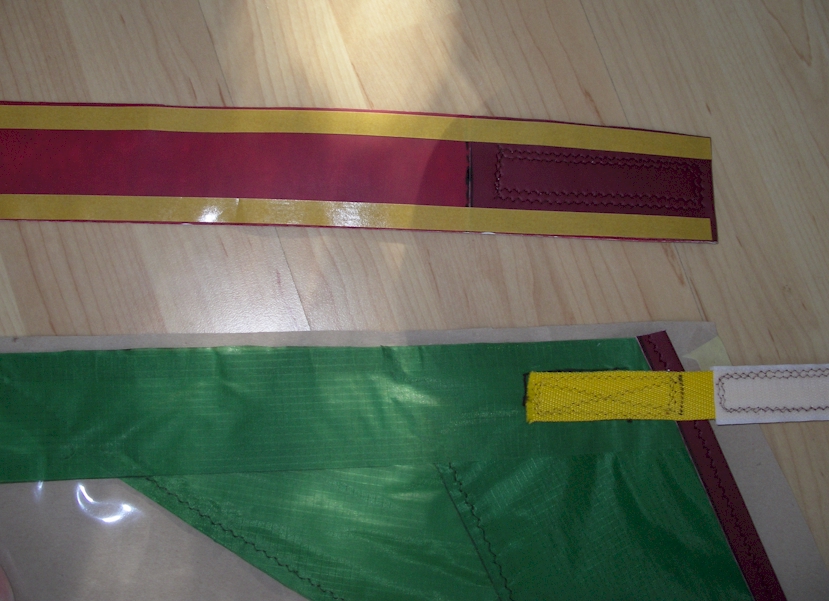

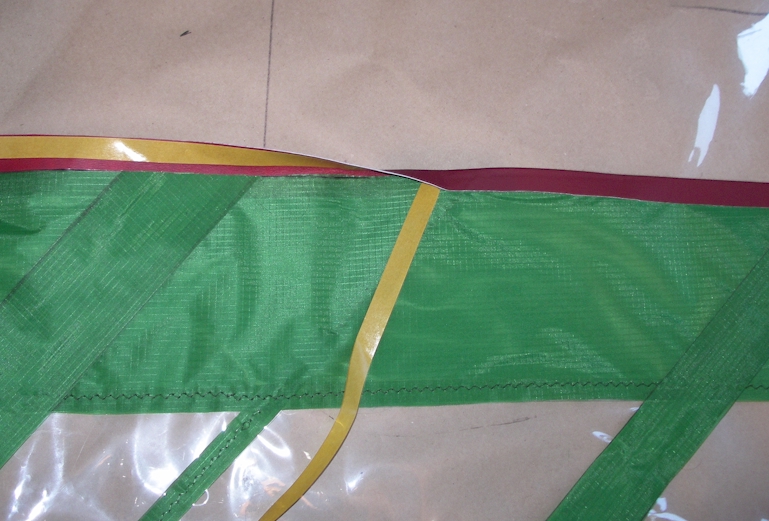

  • applying double-sided tape to edges of batten sleeve

  • sticking and stitching in place

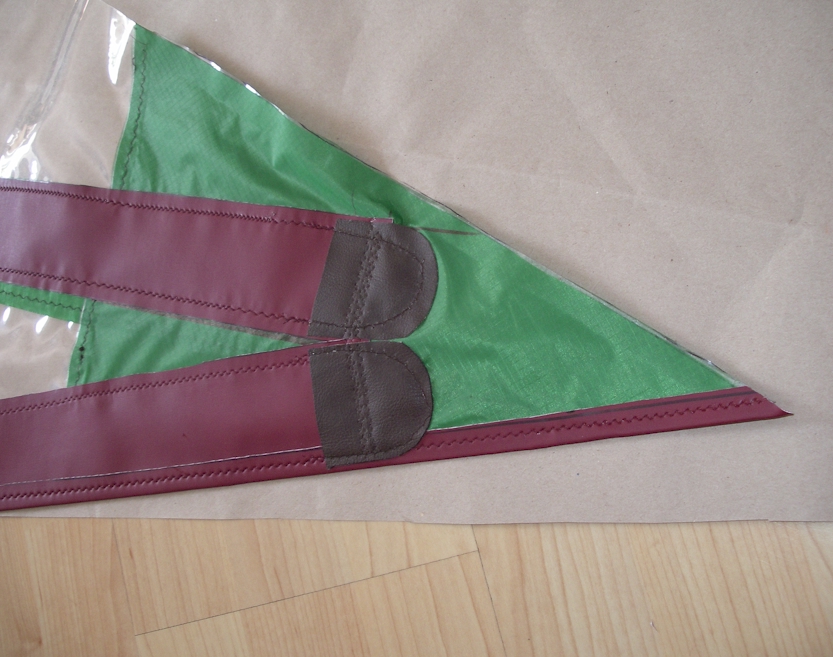

  • adding reinforcement at the front end of each batten pocket

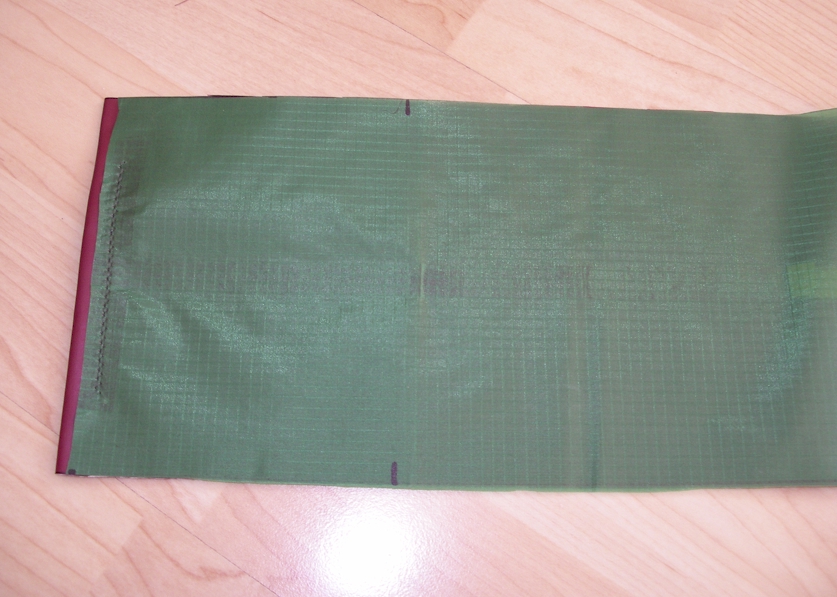

  • preparing mast sleeve - outer layer doubled back at each end and lining from spinnaker nylon

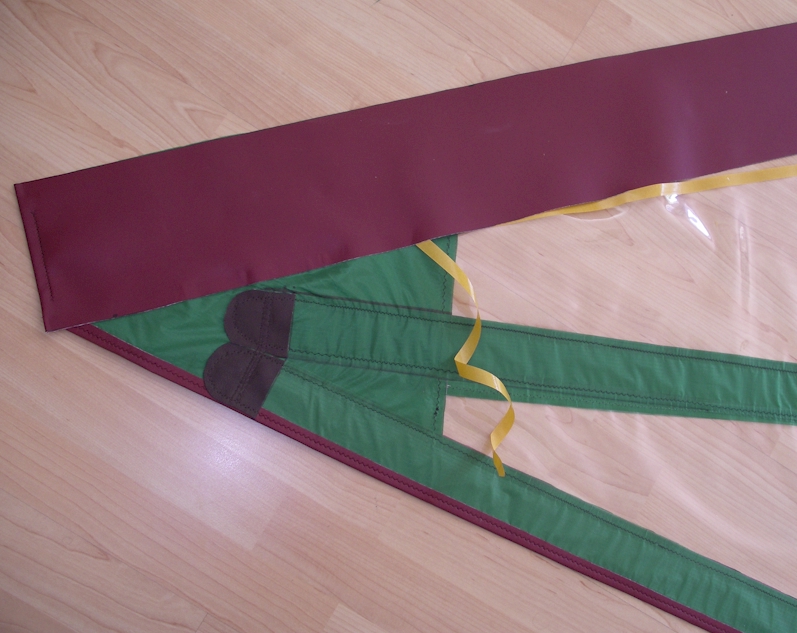

  • attaching mast sleeve to leading edge of one sail membrane

  • attaching other membrane to sleeve

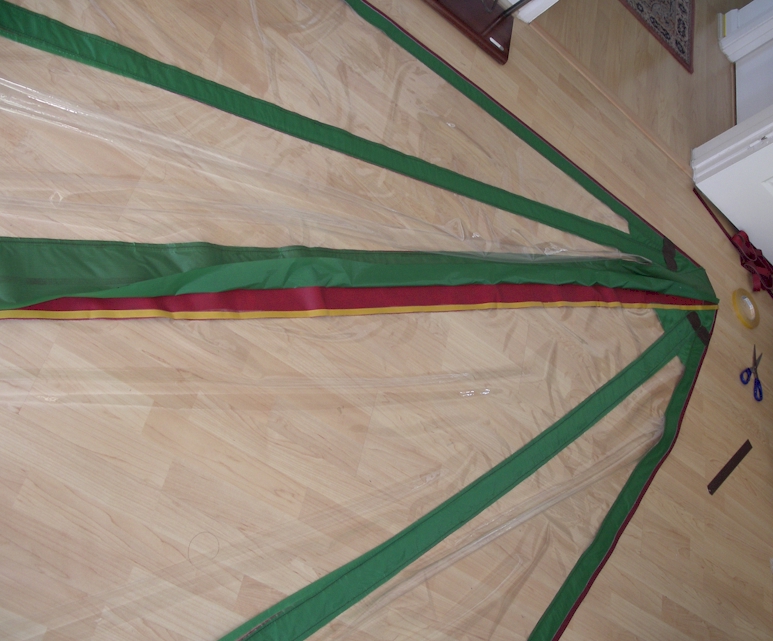

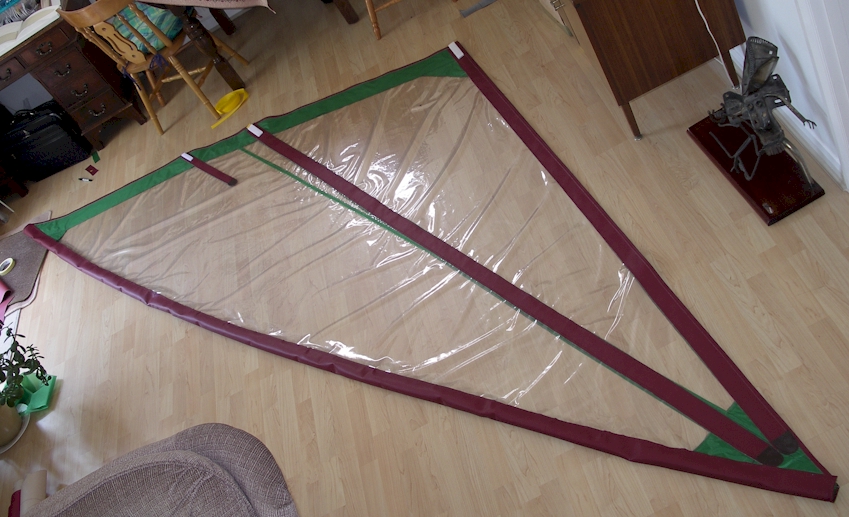

  • basic structure of the sail now complete - eyelets and battens will be added next

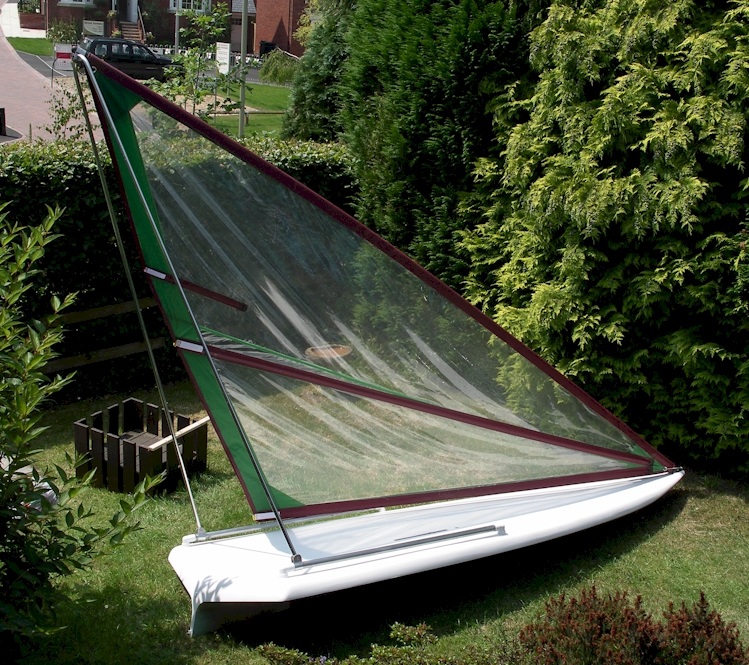

  • sail rigged on mast and hull
